Bipoláris vápacsésze

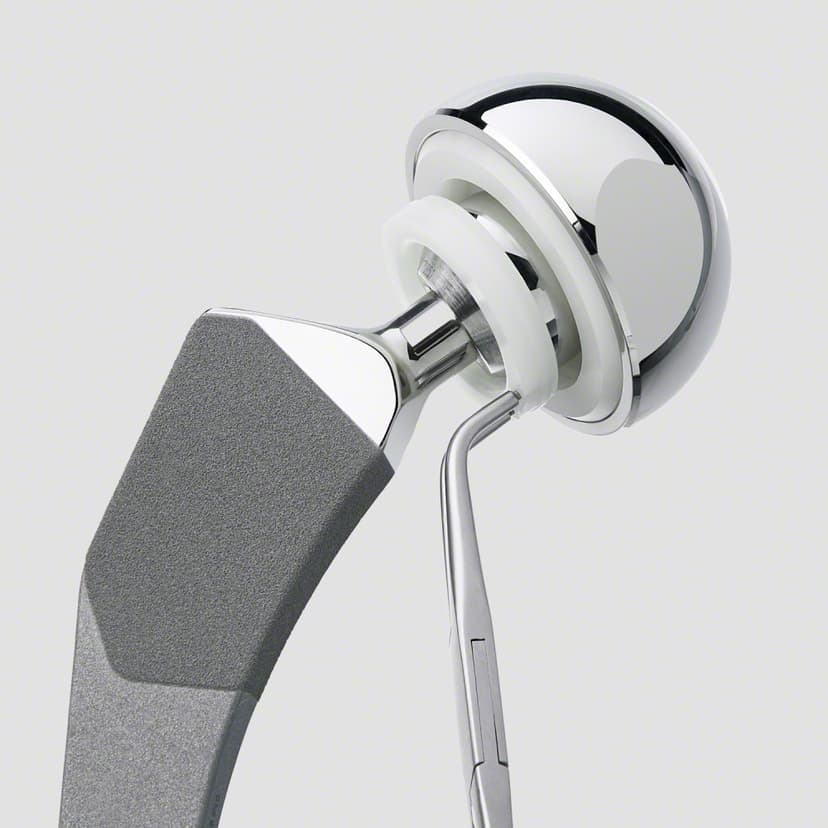

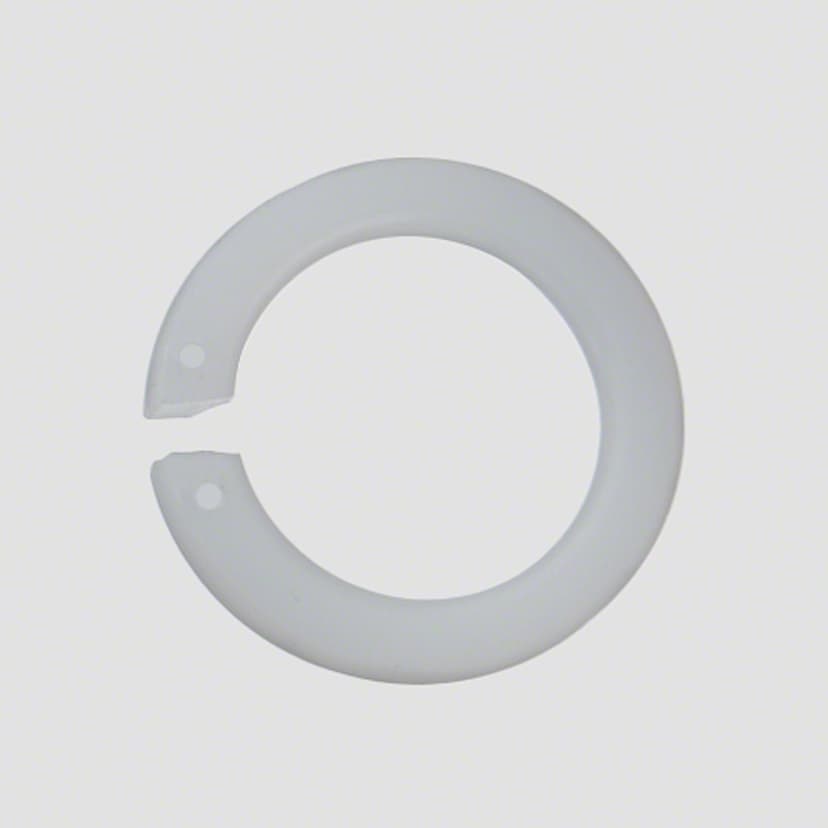

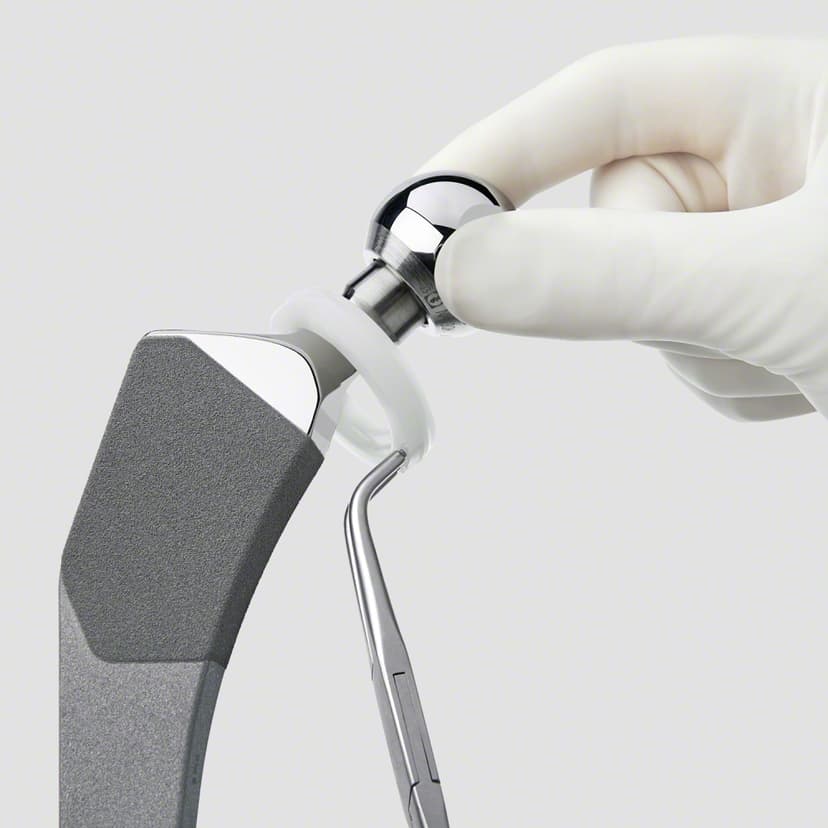

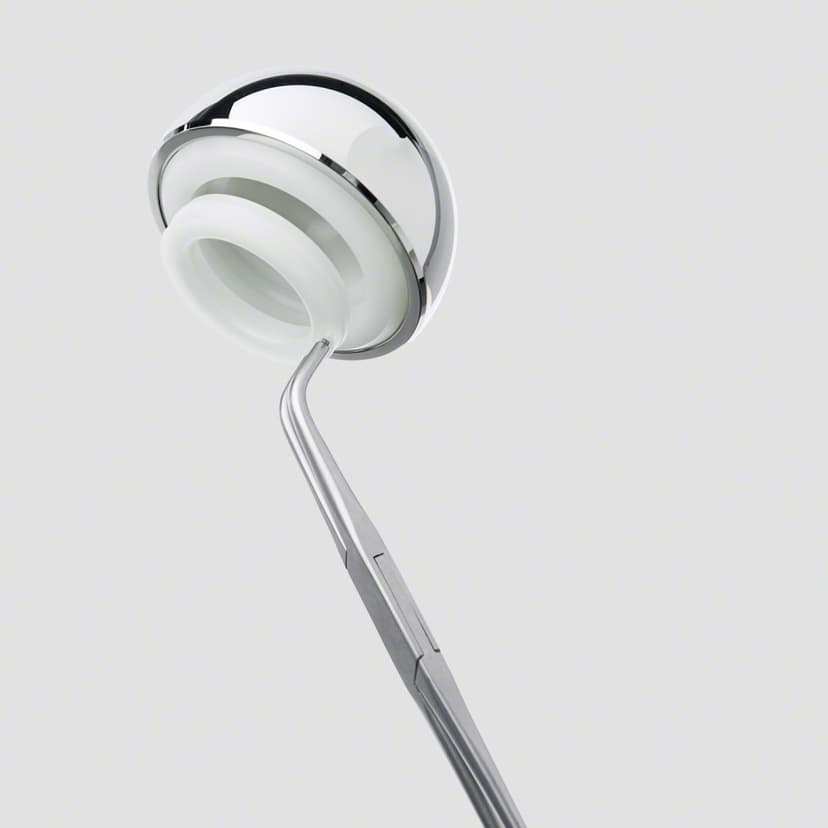

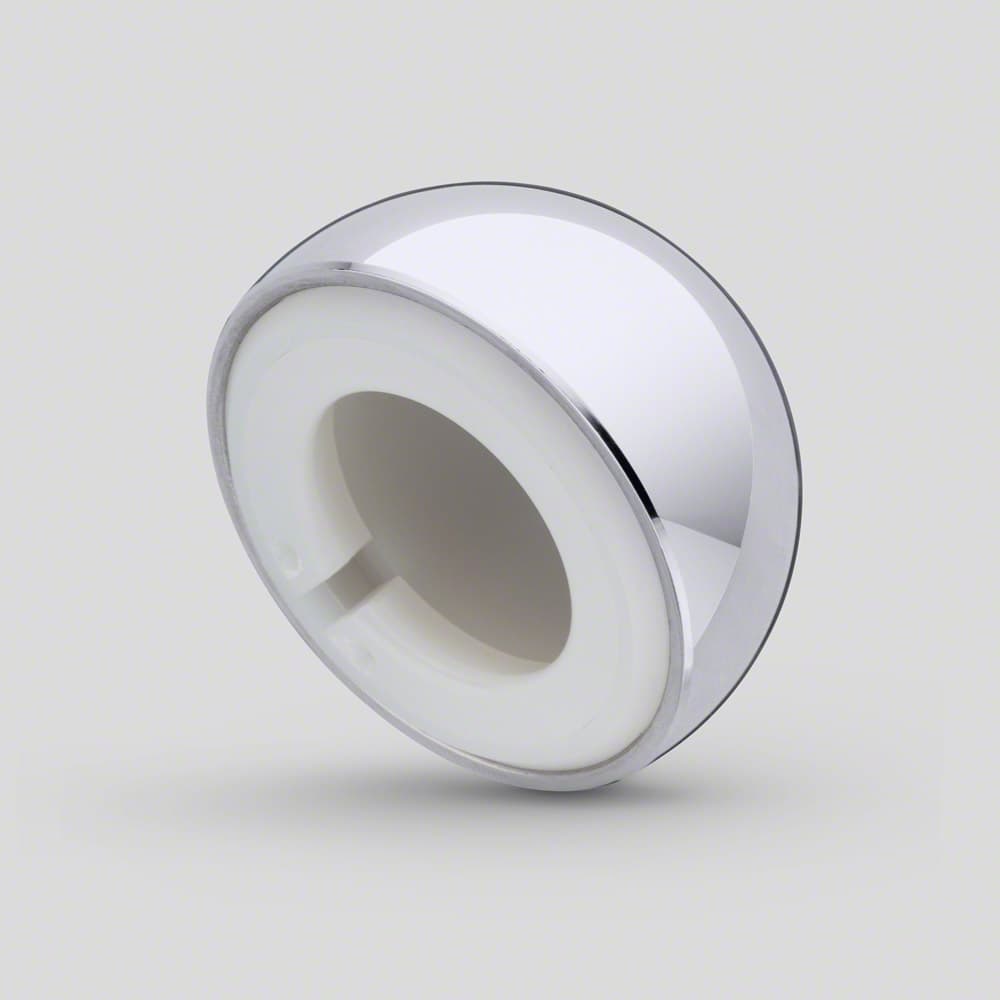

Az Aesculap® bipoláris csésze egy moduláris protézisfejjel kombinált, amelyet fogókkal rögzítenek a rögzítőgyűrűhöz. A levehető rögzítőgyűrű a protézisfej rögzítésére szolgál. Az self-centering kialakítás optimalizálja a terhelésátvitelt és csökkenti a kopást. A fémhéj és a polietilén betét között stabil kapcsolat biztosított. A külső héj implantátum acélból vagy kobalt-krómból készül. A külső átmérő 39 és 60 mm között mozog, a belső átmérő pedig 22,2 és/vagy 28 mm.
